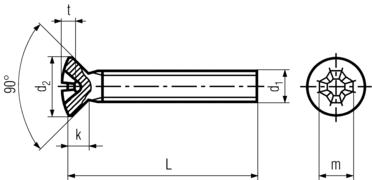

DIN 966 A - Cross Recessed Oval Head Machine Screws

DIN 966 Cross Recessed Oval Head Machine Screws Specificaitons

*All measurements in millimeters (mm)

DIN 966 A - Cross Recessed Oval Head Machine Screws :

d1	d2	k max.	Phillips	m approx.	t		Proof Load N
d1	d2	k max.	Phillips	m approx.	min.	max.	Proof Load N
M2	3.8	1.2	1	2.5	1.1	1.4	600
M2.5	4.7	1.5	1	2.7	1.3	1.6	990
M3	5.6	1.65	1	3.1	1.7	2	1560
M4	7.5	2.2	2	4.5	2.04	2.54	2720
M5	9.2	2.5	2	5.3	2.77	3.27	4400
M6	11	3	3	6.8	3.03	3.53	6230
M8	14.5	4	4	9	4.18	4.68	11400

*All information is strictly informative
