DIN 7984 - Socket Low Head Cap Screws

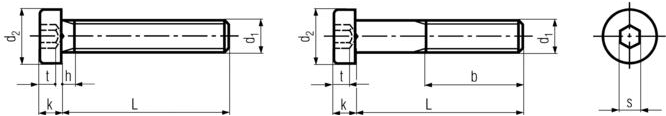

DIN 7984 Socket Low Head Cap Screws Specifications

DIN 7984 - Socket Low Head Cap Screws :

*All measurements in millimeters (mm)*

d1	d2	k	s	t	b
M3	5.5	2	2	1.5	12
M4	7	2.8	2.5	2.3	14
M5	8.5	3.5	3	2.7	16
M6	10	4	4	3	18
M8	13	5	5	3.8	22
M10	16	6	7	4.5	26
M12	18	7	8	5	30
M16	24	9	12	5.5	38
M20	30	11	14	7.5	46
M24	36	13	17	8	54

*All information is strictly informative
