| E1w Cable Glands |
| |
|
|
|
| |
|

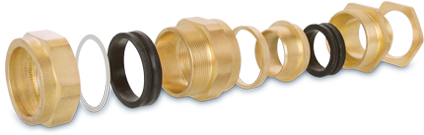

 E1W Cable Glands Details : |
| |
| Size |
20 mm to 90 mm S & L |
| Standard |
EN 50262 : 1999 |
| Application |
For indoor or outdoor use with all types of SWA Cable |
| Function |
Provide for Environmental Seal in the Cable Outer sheath. Also, provide mechanical cable retention & electrical continuity |
| Material |
Brass BS 2874 CZ121 Pb3 |
| Optional Threads |
METRIC, NPT, BSP, PG or as specified |
| Finish |
Brass Finish, Nickel Finish, Chrome Finish or as specified |
| Operating Temp. |
Standard seals -200 C to +800 C |
| Accessories |
Matching Accessories available like PVC Shrouds, Lock Nuts, Earth Tag, Reducers, Adaptors, etc. as per the requirement |
|
| |
| Technical Data : |
| |
| Size |
Thread |
Length |
A |
B |
A/F |
A/C |
| 20S |
M20 |
15.00 |
12.00 |
16.00 |
22.20 |
24.20 |
| 20L |
M20 |
15.00 |
14.00 |
20.50 |
27.00 |
29.50 |
| 20/16 |
M20 |
15.00 |
9.00 |
14.00 |
22.20 |
24.20 |
| 25S |
M25 |
15.00 |
18.50 |
24.50 |
33.50 |
37.50 |
| 25L |
M25 |
15.00 |
20.50 |
27.50 |
36.00 |
40.00 |
| 32S |
M32 |
10.40 |
24.30 |
34.00 |
43.00 |
48.50 |
| 32L |
M32 |
15.00 |
26.27 |
34.20 |
43.50 |
48.50 |
| 40S |
M40 |
15.00 |
29.50 |
41.50 |
52.00 |
58.00 |
| 40L |
M40 |
15.00 |
33.00 |
41.50 |
52.00 |
58.00 |
| 50S |
M50 |
15.00 |
38.50 |
47.00 |
59.00 |
65.50 |
| 50L |
M50 |
15.00 |
44.30 |
53.20 |
64.20 |
71.50 |
| 63S |
M63 |
20.00 |
50.20 |
62.50 |
73.50 |
81.50 |
| 63L |
M63 |
20.00 |
56.20 |
65.50 |
79.50 |
89.00 |
| 75S |
M75 |
20.00 |
62.00 |
74.00 |
87.00 |
97.00 |
| 75L |
M75 |
20.00 |
68.00 |
78.20 |
97.00 |
108.00 |
| 90L |
M90 |
18.50 |
80.00 |
91.00 |
103.50 |
114.50 |
|
| |
| Any kind of brass e1w cable glands, brass cable glands can be developed and supplied exactly as per Customer Specifications & Requirement. |
| |
|
|
| |
|
|
|
|
|
|
|
